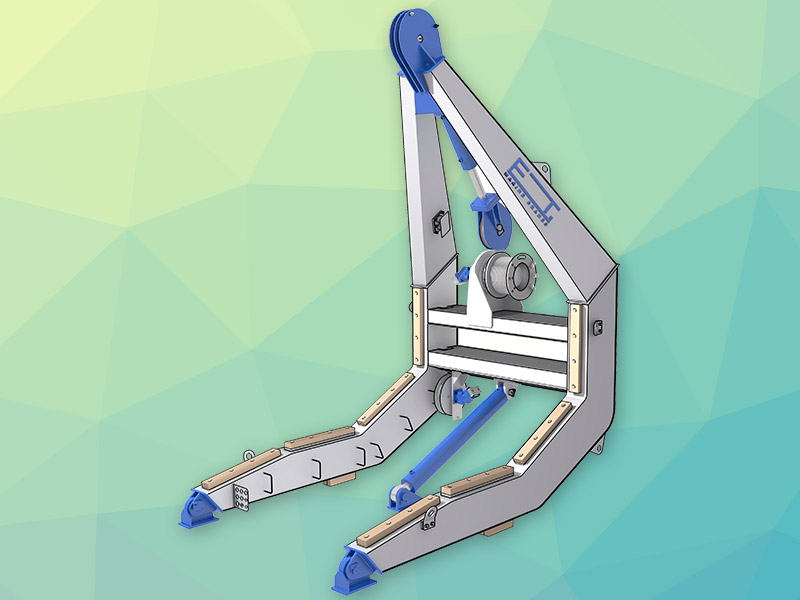

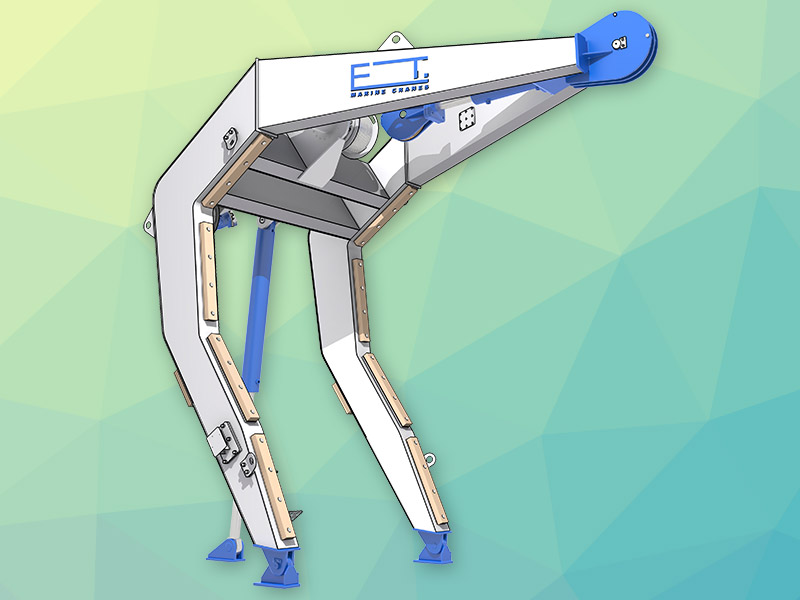

ET boat davits meet your demanding requirements in the field and is the optimal solution for your single point lifting application.
All ET MARINE cranes can be equipped with various accessories and certified by various certification societies according to customer demand.
| Main Operational Data | ET 20 | ET 36 | ET 40 | ET 140 |
|---|---|---|---|---|
| Lifting Capacity | 2000 kg | 3600 kg | 4000 kg | 14000 kg |
| Voltage Main Motor | 380V 50/60Hz | 690V 50/60Hz | ||
| Control Stand | To be placed on the ship near to davits | |||
| HPU | Integrated / not integrated | |||
| Hoisting and lowering speed | 0 - 18 m/min | 0 - 48 m/min | ||
- Operating between -20°C and + 40°C
- Full documentation and operating manual
- Ergonomic Design and reliability in operation
- Precise control and safe for all operating functions
- Protected HPU
- Hydraulic line made in stainless steel
- Warranty and original spare parts only (global availability)
- Our units are equipped with Parker and Siemens components
- Other sizes available on request.
